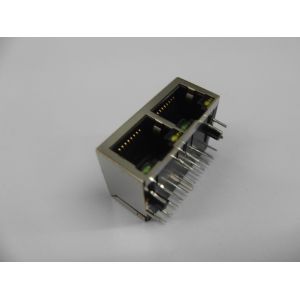

Side entry PCB mount double port combo RJ45 connector ethernet modular jack

• 10/100/1000Base-Tx RJ45 2 port 1X2 Side Entry with LEDS
• Double port 1X2 Tab-up
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shield:YES
• Rohs compliant
• EMI finger:NO

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
