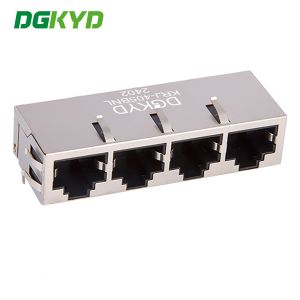

KRJ-405BNL RJ45 Multiple Port Connectors 100Mbps Integrated Filter Network Interface Communication Socket Ethernet Jack

Product Specification Document

KRJ-405BNL.pdf

Parameters

• 10/100/1000Base-Tx RJ45 4 port 1X4 Side Entry (Right Angle)without LED
• 4 port 1X4 Tab-Down 90 degree RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:10
• Number of contacts loaded:8
• Shieded:YES
• Rohs compliant
• Length:21.3mm
• LEDS:NO
• EMI fingers:YES
• Usage: KRJ-405BNL
