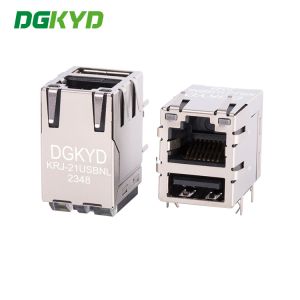

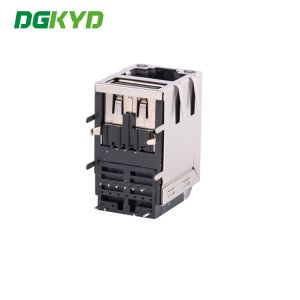

    KRJ-21USBNL Rj45 8p8c Modular Connector USB2.0 Socket Integrated With 100Mbps Network Interface Tab Up

    Ask Lasest Price
    Brand Name : DGKYD
    Model Number : KRJ-21USBNL
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Please contact us to get the latest price.
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 100K pcs/day
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    KRJ-21USBNL Rj45 8p8c Modular Connector USB2.0 Socket Integrated With 100Mbps Network Interface Tab Up

    KRJ-21USBNL RJ45 connector with USB2.0 socket integrated with 100Mbps network interface Tab up


    Product Specification Document

    KRJ-21USBNL.pdf



    Part Number
    KRJ-21USBNL
    Brand
    DGKYD/OEM/ODM
    Place of Origin
    Guangdong of China
    Certification
    ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
    Product Type 
    Connector-Modular
    Connector Style
    Jack
    Jack Type
    RJ45+USB
    Connector Type 
    Modular Jack
    Latch Style
    Standard
    Latch
    Up
    Filter
    With/Without Filter
    LED Option
    With LED
    LED Color
    Green/Yellow
    Panel Stops
    With Panel Stops
    Shielded
    Yes
    Applies To 
    Printed Circuit Board
    Performance Speed
    10/100 BASE-T
    Grounding Options
    Panel Ground and PCB Ground
    Port Configuration 
    RJ45 + USB
    Number of Positions 
    6
    Jack Configuration
    1+ 1
    Terminals per Port
    8
    Shield Material
    Copper Alloy preplated with Nickel
    PCB Mounting Orientation 
    Side Entry (Right Angle)
    Contact Mating Area Plating Material 
    Gold 6u/15u/30u/50u
    Contact Base Material 
    Phosphor Bronze
    Solder Tail Contact Plating Material 
    Tin-Lead over Nickel
    PCB Mounting Style 
    Through Hole
    Termination Method to PC Board 
    Through Hole-Press-Fit
    Board Lock
    With/Without Board Lock
    Housing Material 
    PBT Polyester
    Housing Color
    Black
    Housing Material  Temperature
    Standard
    UL Flammability Rating 
    UL 94V-0

    Competitive Advantage:

    Keyouda has various types of appearance and many kinds of internal schematic products,high quality,customerfirstly, 100% test, 0 defect, short lead time are our best advantages.


    Customer Satisfaction:

    Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.


    Payment Terms:

    There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect


    Return Policy:

    If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.


    Feedback:

    Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
