POE Single Port Modular Illuminated RJ45 Shielded Connector

Ask Lasest Price
Brand Name :	DGKYD
Model Number :	DGKYD111B015DB2A1DPC
Certification :	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Price :	Please contact us to get the latest price.
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :	100K pcs/day
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

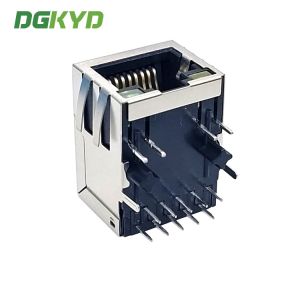

POE Single Port Modular Illuminated RJ45 Shielded Connector

POE Single Port Jack Modular Network Interface RJ45 Shielded Illuminated Connector Ethernet Filtering DGKYD111B015DB2A1DPC

Parameters

Part Number	DGKYD111B015DB2A1DPC	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Down
Filter	With Filter	LED Option	With LED
LED Color	Yes.L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Why Choose Us

MATERIAL:
HOUSING: PBT,UL 94V-0,BLACK.
TERMINALS BRACKET: PBT,UL94V-0,BLACK.
SHIEI .D: C2680,T=0.20MM,NICKEL PI ATING ON ALL AREA.
TERMINAL: PHOSPHOR BRONZE C5210,T=0.35MM,
6U" GOLD PI ATING ON CONTACT AREA.
MECHANICAL:
DURABILITY : 750 CYCLES MIN.
MATING FORCE : 23N MAX.
OPERATING TEMPERATURE: -40°C~ +859C.
STORAGE TEMPERATURE: -40°C~+85°C.
ALL CRITICAL DIMENSIONS WITH "*"

Drawings

POE Single Port Modular Illuminated RJ45 Shielded Connector

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
