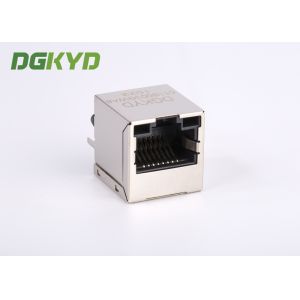

Shield single Port Rj45 Lan Jack connector top entry 100Base - TX with LED

Product Categories

RJ45 Ethernet Connector [58]
RJ45 Shielded Connector [66]
RJ45 Multiple Port Connectors [3]
RJ45 Single Port [1]
Cat6 RJ45 Connector [20]
RJ45 With Transformer [196]
RJ11 Jack [39]
RJ45 Without Transformer [101]
RJ45 1X1 21.3mm TAB-DOWN [12]
RJ45 1X1 21.3mm TAB-UP [10]
RJ45 SMD [36]
RJ45 1X1 25.4mm TAB-UP [10]
RJ45 Modular Jack [37]
RJ45 1X1 33mm TAB-UP [7]
RJ45 Female Jack [9]
180 1x1 Angle Vertical /Top Entry [21]
RJ45 Lan Jack [40]
RJ45 1X1 TAB-DOWN / UP [6]
RJ45 Magnetics [26]
2 Port RJ45 [86]
RJ45 1X2 TAB-DOWN / UP [16]
RJ45 1X4 TAB-DOWN / UP [15]
RJ45 PCB Connector [22]
10 Pin RJ45 Connector [11]
RJ45+Single/Dual USB [16]
RJ45 2X1 [16]
RJ45 2X2 [7]
RJ45 2X4 [6]
Isolated Transformers [3]
RJ45 2X6 [1]
RJ45 2X8 [1]
SFP Connector RJ45 [11]
Connector Wire Harness [10]
RJ45 2.5G [10]
RJ45 5G [2]
TF SIM CONNECTOR [33]
RJ45 10G [3]
52 Series [37]
53 Series [9]
55 Series [16]
56 Series [55]
57 Series [6]
59 Series [40]
60S Series [3]
RJ45+ Single/Double USB [4]
SMD(10/100/1000M Base-T ; 2 5G/5G/10G Base-T ) Network Transformer Series [72]
DIP(10/100/1000M Base-T ; 2 5G/5G/10G Base-T ) Network Transformer Series [16]

Keyouda Electronic Technology Co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	DGKYD
Model Number :	DGKYD511B003GWA8D
Certification :	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Price :	Please contact us to get the latest price.
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :	100K pcs/day
Delivery Time :	10 days

Add to Cart

Shield single Port Cat5e vertical RJ45 connector, top entry, 100Base-TX
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	No
PCB MOUNT ANGLE	VERTICAL
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	YES
LATCH ORIENTATION	TOP ENTRY
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

► Product Features

ELECTRICAL

Current Rating: 1.5A

Voltage Rating: 125VAC

Contact Resistance: 35mΩ

Insulation Resistance: 1,000MΩ

Dielectric Withstanding Voltage: 1,000VAC

Applications:

► Product Drawing
